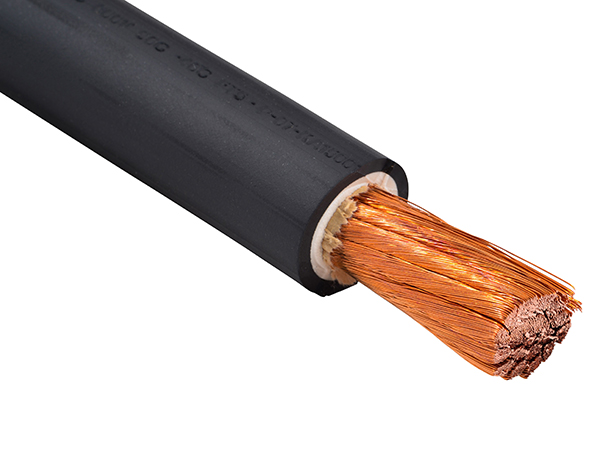

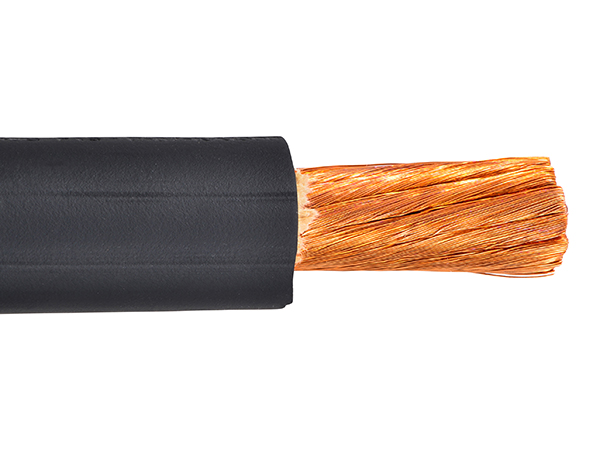

Dura-Flex® Type W

Portable Power Cable

Direct’s Dura-Flex Type W cable is a highly durable, flexible portable cable primarily used for permanent or temporary power supply. The versatile cable is commonly terminated with Cam-Lok™ connectors and other power connector types to construct various power cable assemblies, feeder cables, and cable extensions.

Dura-Flex Type W cable is typically deployed within heavy-use, industrial, and emergency applications, including power and equipment rental (e.g. power generators), motor and battery leads, mining and oil drilling, shore power, HVAC systems, and general power distribution.

Dura-Flex Type W cable is UL and cULus listed, CSA approved, RHH / RHW / RHW 2, RoHS compliant, and manufactured in the USA.

Specifications

Conductors
  • Rope-lay, bunch-stranded 30 AWG copper conductor
  • Bare ASTM Class K copper
Voltage Rating
  • 600 V and 2,000 V
Separators
  • Paper (conductor); Mesh (insulation)
Insulation & Jacket
  • Insulated with low-smoke, halogen-free EPDM compound
  • Jacketed with proprietary CPE compound
Resistance Properties
  • Resistant to abrasion, crushing force, extreme temperatures, flame, impact, oil, sunlight, and water
  • UL tested 60°C (140°F) oil resistant temperature rating
  • UL tested 720 hours sunlight resistance rating
Temperature Range
  • -40°C (-40°F) to 90°C (194°F) Dry; 90°C (194°F) Wet
Industry Approvals
  • UL 1650
  • IAW UL 44 and 2556
  • IAW CSA C22.2 No. 96 and No. 2556
  • IAW ASTM B3, B49, and B172
  • cULus Listed
  • MSHA Approved
  • FT-1, FT-2, and FT-5
  • RHH / RHW / RHW-2
  • RoHS and Prop 65 Compliant
Available Lengths
  • Coils/Assemblies at 25’, 50’, 100’, and 250’
  • Reels at 500’, 1,000’, and 2,500’
  • Custom lengths available upon request
AWG SizeStranding GaugeConductor StrandingWall Thickness
(Nominal)
Outside Diameter
(Nominal)
Cable Weight
(per 1,000')
Ampacity*
inmminmmlbskg
#630 GA273.0952.41.50312.7818885105 A
#430 GA429.0952.41.54913.94253115140 A
#230 GA676.0952.41 .62015.75350159190 A
#130 GA845.0952.41.68817.48436198220 A
1 / 030 GA1,066.0952.41.74018.80523237260 A
2 / 030 GA1,339.0952.41.79420.17631286300 A
3 / 030 GA1,677.0952.41.83021.08740336350 A
4 / 030 GA2,109.0952.41.90623.01908412405 A
(*) Allowable ampacity per NFPA 70 / NEC Article 400. Values are based on ambient temperature of 30°C.
Jacket Colors
  • Black (Standard) Blue Green Red Yellow
  • Custom striping available upon request
  • Custom colors available upon request
Sample Print Legend
  • {DIRECT LOGO} DURA-FLEX (cULus) {E #} TYPE W {AWG SIZE} 90C DRY 90C WET 2000 V SUN RES OIL RES 60C - PPC 600V 90C -40C FT5 - {P#} MSHA
Marking Options
  • Quick Print®
  • Surface Print
  • Indent Print
  • Logo / Icons / Branding
  • Sequential Marking
