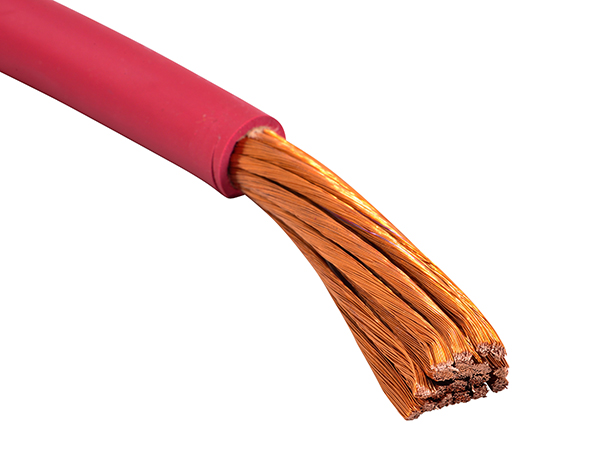

SGR - End Detail - ANGLE
SGR - End Detail - STRAIGHT

SGR

Interconnection Battery Cable

Direct’s Type SGR is a durable and versatile battery cable designed for interconnection between battery terminals and starters or grounds in automotive and other vehicular applications (e.g. car, bus, truck, tractor, etc.). Type SGR is UL listed, compliant to RoHS and SAE J1127 standards, and manufactured in the USA.

  • Rope-lay, bunch-stranded 30 AWG SAE copper conductor
  • Wrapped paper separator
  • Jacketed with proprietary LSHF EPDM compound
Request A Quote View Spec Sheet

Specifications

Conductors
  • Rope-lay, bunch-stranded 30 AWG SAE copper conductor
Voltage Rating
  • 60 V DC; 25 V AC
Separator
  • Wrapped paper separator
Insulation & Jacket
  • Jacketed with proprietary low-smoke, halogen-free EPDM compound
Resistance Properties
  • Resistant to abrasion, battery acid, diesel fuel, engine coolant, engine oil, ethanol, extreme temperatures, flame, gasoline, power-steering fluid, transmission fluid
Temperature Range
  • -40°C (-40°F) to 105°C (221°F) (-50C imprinting available upon request)
Industry Approvals
  • UL Listed
  • Meets battery cable requirements per UL 558 and UL 583
  • UL 4127 (60 V DC; 25 V AC)
  • SAE J1127 Compliant
  • REACH, RoHS, CMRT, and Prop 65 Compliant
Available Lengths
  • Coils/Assemblies at 25’, 50’, 100’, and 250’
  • Reels at 500’, 1,000’, and 2,500’
  • Custom lengths available upon request
Cable SizeStranding GaugeConductor
Stranding		Insulation Thickness
(Nominal)		Outside Diameter
(Nominal)		Cable Weight
(per 1,000')
AWGininlbs
#630260.060.305110
#430364.065.333145
#230624.065.415235
#130767.065.443282
1/030975.065.488351
2/0301,196.065.526423
3/0301,547.078.609553
4/0301,950.078.674685
AWG SizeStranding GaugeConductor StrandingInsulation Thickness
(Nominal)		Outside Diameter
(Nominal)		Cable Weight
(per 1,000')
mmmmkg
#6302601.527.7451
#4303641.658.4568
#2306241.6510.54107
#1307671.6511.25139
1/0309751.6512.39168
2/0301,1961.6513.36204
3/0301,5471.9815.46257
4/0301,9501.9817.11321
Jacket Colors
  • Black (Standard) Blue Green Red Yellow Orange
Marking Options
  • Quick Print®
  • Surface Print
  • Indent Print
  • Logo / Icons
  • Sequential Marking
Sample Print Legend
  • {AWG SIZE} SGR EXTRA FLEXIBLE BATTERY CABLE SAE J1127 -40°C + 105°c MADE IN USA
