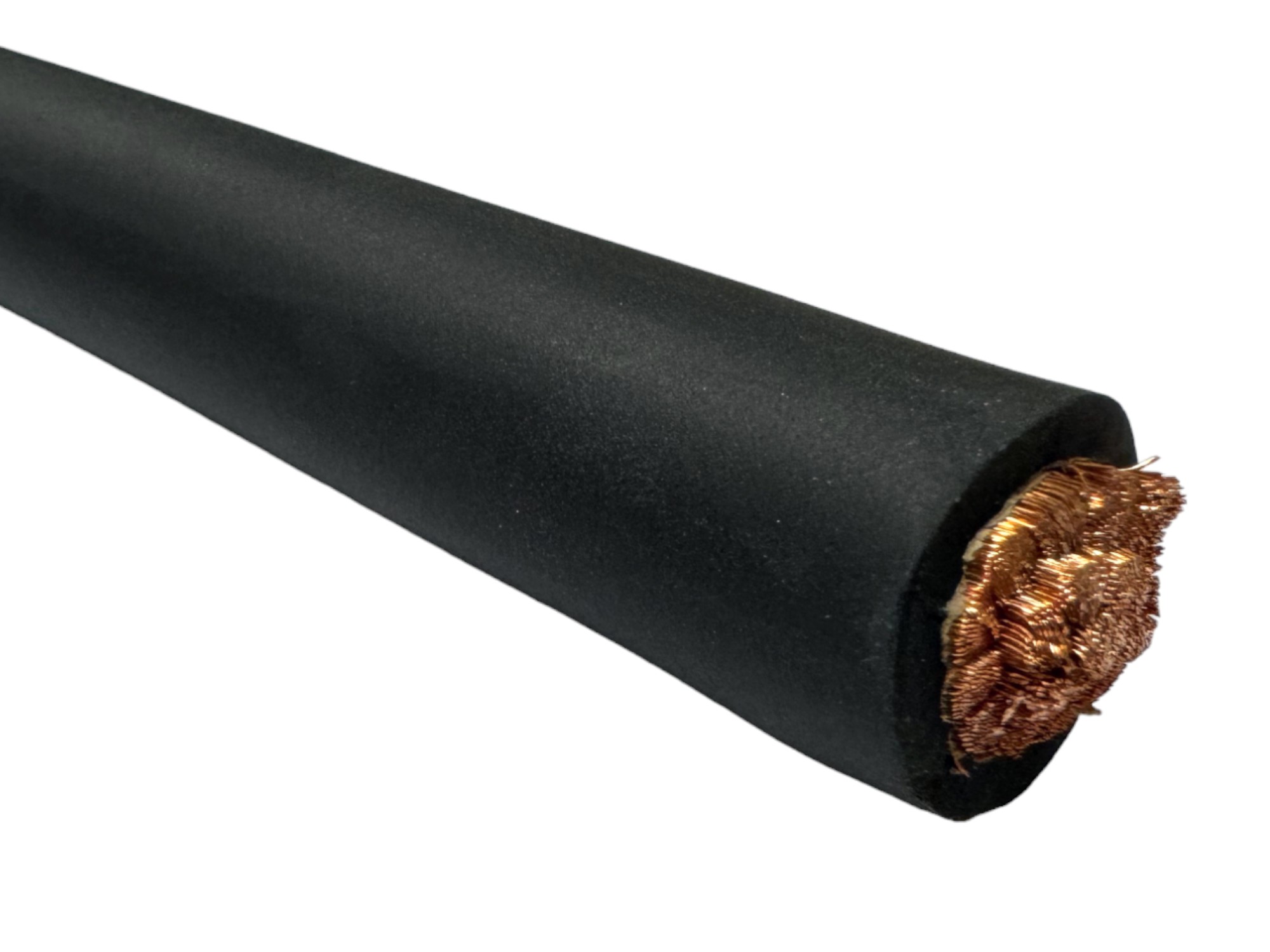

Veri-Flex® SC / Stage Cable

Single-Pass Stage Cable

Direct’s Veri-Flex® single-pass stage, sound, and lighting cable is an industrial-grade flexible and heavy-duty power cable used within the entertainment industry, including live events, movie and television, and theatre lighting. Veri-Flex® has been designed and manufactured to achieve the optimal balance of flexibility and durability, with unparalleled customization. Veri-Flex® is UL listed, RoHS compliant, and manufactured in the USA.

  • Rope-lay, bunch-stranded 30 AWG copper conductor
  • Bare ASTM Class K copper
  • Wrapped paper separator
  • Single-layer proprietary CPE construction

Specifications

Conductors
  • Rope-lay, bunch-stranded 30 AWG copper conductor
  • Bare ASTM Class K copper
Voltage Rating
  • 600 V
Insulation & Jacket
  • Wrapped paper separator
  • Single-Layer proprietary CPE construction
  • Resistant to abrasion, crushing force, extreme temperatures, flame, impact, oil, sunlight, and water
  • UL tested 60°C (140°F) oil resistant temperature rating
  • UL tested 720 hours sunlight resistance rating
Temperature Range
  • -50°C (-58°F) to 105°C (221°F) Dry
Industry Approvals
  • UL Listed Type SC
  • UL 1680 (Stage and Lighting Cable)
  • UL 44 and 1581, & 2556
  • NFPA 70/NEC Articles 400, 520, 525, and 530
  • FT-5 (4/0 and larger only)
  • ASTM B3, B49, B172, and B263
Available Lengths
  • Reels at 250' / 500’ / 1,000’ / 2,500’
  • Custom lengths and assemblies available upon request
AWG SIZESTRAND GAUGESTRANDINGINSULATION THICKNESSOUTSIDE DIAMETERAMPACITY(*)LBS PER 1K'
ININ
#830182.090.35780101
#630273.097.417105147
#430429.097.452140203
#230676.097.521190293
#130845.115.592220376
1/0301,066.115.632260451
2/0301,339.115.681300549
3/0301,677.115.734350667
4/0302,109.115.797405813
250 MCM302,527.115.855455956
AWG SIZESTRAND GAUGESTRANDINGINSULATION THICKNESSOUTSIDE DIAMETERAMPACITY(*)LBS PER 1K'
MMMM
#8301822.29 9.0780101
#6302732.4610.60105147
#4304292.4611.49140203
#2306762.4613.24190293
#1308452.9215.04220376
1/0301,0662.9216.05260451
2/0301,3392.9217.30300549
3/0301,6772.9218.64350667
4/0302,1092.9220.24405813
250 MCM302,5272.9221.72455956
Jacket Colors
  • Black (Standard)
Sample Print Legend
  • VERI-FLEX (UL) {E #} SC {AWG SIZE} 105C - 50C WATER RES 75C 600V SUN RES OIL RES 60C MAX AMPS NEC TABLE 400.5(B) FOR 90C - PPC 600V 90C FT5 {P#} MSHA
Marking Options
  • Quick Print®
  • Surface Print
  • Indent Print
  • Logo / Icon
  • Sequential Marking
