Dura-Flex® Type W Assemblies

Temp Power Cable & Generator Cord

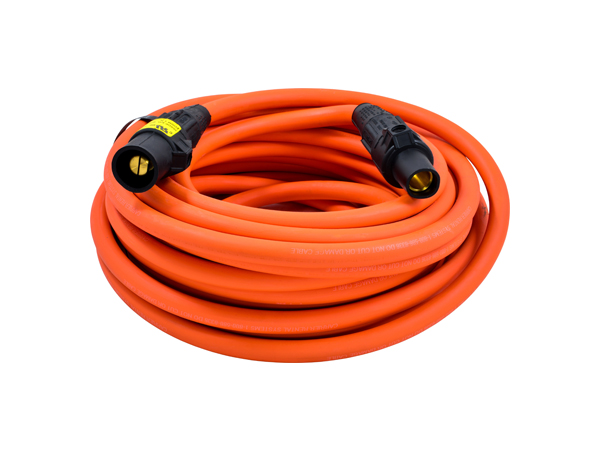

Dura-Flex Type W assemblies are high-quality, portable power cables used for temporary and permanent power supply. Constructed with industrial-grade Type W cable and cam connectors, these power assemblies are commonly used for portable generators, temp power extensions, feeder cables, shore power, emergency power, load banks, and general power distribution.

  • Dura-Flex Type W Cable
  • EPDM insulation; CPE jacketing
  • #6 to 4/0 AWG sizes available
  • Black (standard), colored, or striped cable available

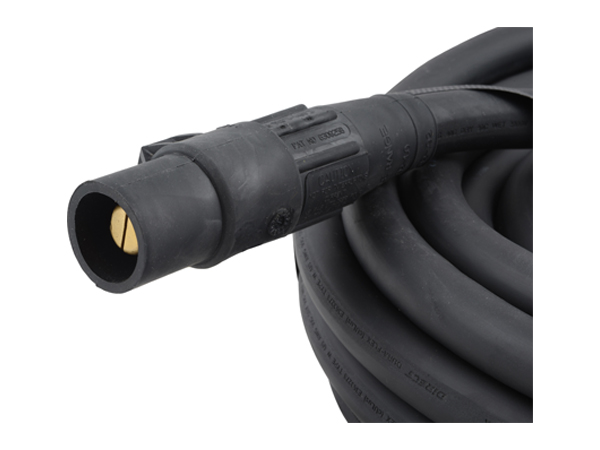

  • 16 series cam connectors (color coded)

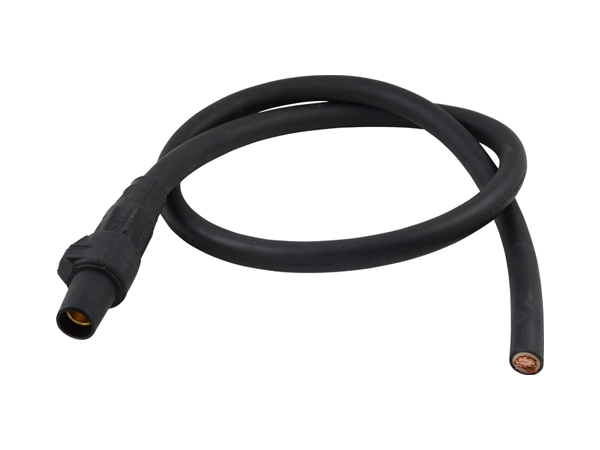

    • Bare end and/or cable terminations available
  • UL / cULus / CSA / NEMA / MSHA / RoHS

Specifications

Conductor
  • Rope-lay, bunch-stranded 30 AWG copper conductor
  • Bare ASTM Class K copper
Voltage Rating
  • 600 V; 2,000 V
Insulation & Jacket
  • EPDM — low-smoke, halogen-free compound (Insulation)
  • CPE — proprietary compound (Jacket)
Resistance Properties
  • Abrasion, crushing force, extreme temperatures, flame, impact, oil, sunlight/UV, and water
Temperature Range
  • -40°C to 90°C (-40°F to 194°F)
Industry Approvals
  • UL 44, 1650, and 2556
  • cULus Listed
  • NEMA 3R Rated
  • CSA C22.2 No. 96 and No. 2556
  • ASTM B3, B49, and B172
  • MSHA Approved
  • FT-1, FT-2, and FT-5
  • RHH/RHW/RHW-2
  • RoHS Compliant
Assembly Lengths
  • 25' and 50' (stock/standard)
  • 75' and 100'

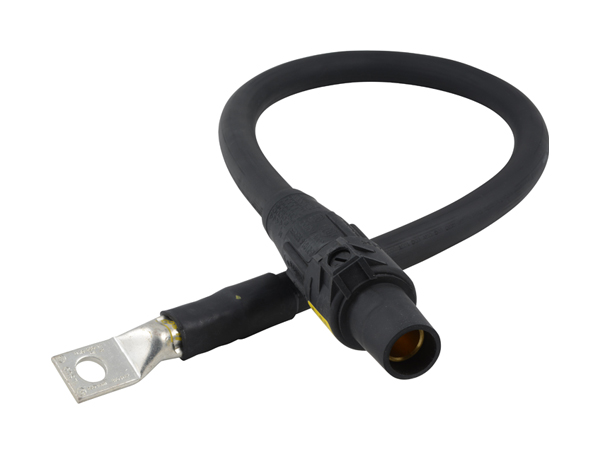

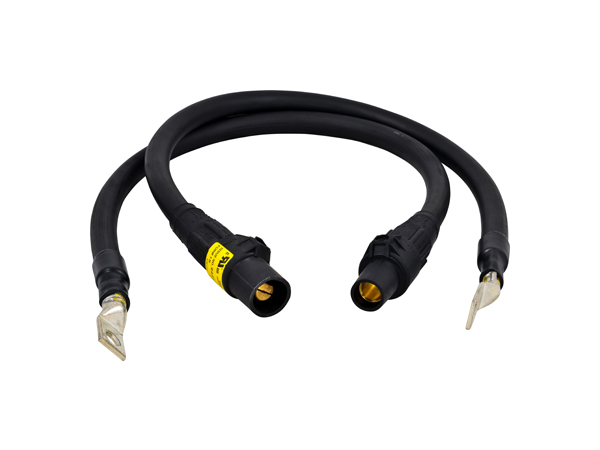

  • 3' to10' available bare or with lug
  • Custom assembly lengths available upon request
Packaging Options
  • Coiled with nylon strap with D rings (25'< assemblies)
  • Coiled with plastic adhesive strapping
  • Coiled with no strapping
AWG SizeStranding GaugeConductor StrandingInner Wall
(Nominal)
Outer Wall
(Nominal)
Outside Diameter
(Nominal)
Cable Weight
(per 1,000')
Ampacity*
inininlbs
#630 AWG273.060.095.521188105 A
#430 AWG429.060.095.556253140 A
#230 AWG676.060.095.633350190 A
#130 AWG845.080.095.704436220 A
1/030 AWG1,066.080.095.736523260 A
2/030 AWG1,339.080.095.785631300 A
3/030 AWG1,677.080.095.838740350 A
4/030 AWG2,109.080.095.901908405 A
(*) Allowable ampacity per NFPA 70 / NEC Article 400. Values are based on an ambient temperature of 30°C
Cable Colors
  • Black (Standard) Blue Green Red Yellow
  • Custom cable striping available upon request
  • Custom cable colors available upon request
Cam Connector Colors
  • Black Blue Brown Green Orange Red White Yellow

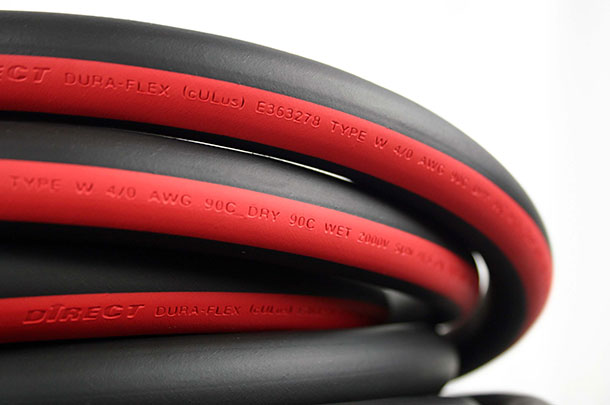

Marking Options
  • Quick Print®
  • Surface Print
  • Indent Print
  • Logo / Icons / Branding
  • Sequential Footage Marks
